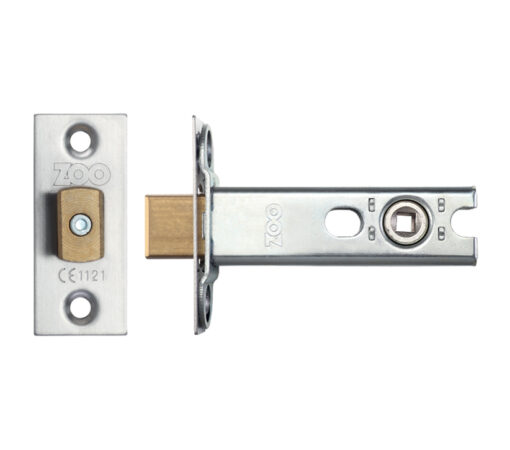

A Dead Bolt is designed to be used with a Turn and release and is ideally suited to bathroom doors or bedroom doors. The deadbolt is operated by a 5mm spindle and the bolt deploys with a quarter turn.
Various Sizes Available:– (2.5 Inch) 15 x 22 x 64mm Body, 44.5mm Backset
– (3 Inch) 15 x 22 x 76mm Body, 57mm Backset
– (4 Inch) 15 x 22 x 102mm Body, 82mm Backset
– (5 Inch) 15 x 22 x 127mm Body, 108mm Backset
– (6 Inch) 15 x 22 x 152mm Body, 127mm Backset, 25mm x 65mm Forend
This Product is Suitable for Bolt Through Fixing and comes with a 10-year mechanical guarantee
Bodies are only available (BDS).
This item is intended for use with a bathroom turn & release Double sprung or Architectural quality basically means heavy duty. You would select this standard of lock or latch for doors that are in constant use or even subject to abuse, Perhaps in a commercial-type environment.
