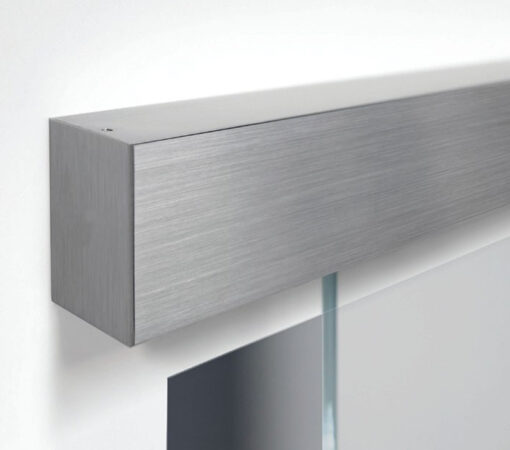

Planeo 120 Comfort Sliding Door System For Glass Doors, 2000mm OR 4000mm

Product Details

Can be used for 1 or 2 leaf wooden or glass sliding doors. Glass is securely clamped and does not require any special preparation. The soft-closing operation gently guides the doors into their end position and holds them there

Minimum dimensions of the profile and an unobtrusive design integrate the system into any living ambience. Fine ground and anodised aluminium surfaces support the quality of the hardware

• Dimensions:

   – Rail Dimensions Width: 45mm x Height: 63mm
   – Standard Length 2000, 4000mm

• Max Door Weight 80kg

• Min Door Width 850mm

• Suitable for Wooden Doors with optional adapter

• Min Wooden Door Thickness 34mm

• Max Wooden Door Thickness 40mm

• Tested in accordance with DIN EN 1527:2013, 100,000 cycles


• Optional Skirting/Architrave Spacer Kit (Please see related products)


• GLASS DOOR NOT INCLUDED
