| Model | EA225 |
| Color | Black, Silver Grey |
| Double Side Locking Supported | Fingerprint Double Side Locking |
| Door Type | Wooden Door/Security Door/Composite Door/UPVC/ Aluminium Doors |
| Certification | CE, FC, ROSH |
| Unlock Angle | 75°Max Unlock Angle |
| Waterproof / Fireproof | Yes |
| Suitable for Mortise Sash Lock & UPVC Multipoint Locks | Works with all mortice sash locks and works with 90% of the Multipoint locks |
| Lock Dimension | 280mm(H) 33mm(W) 22mm(T) |
| Material | Aluminum Alloy |
| Battery | 12 Months Battery Life |
| Working Voltage | 6V(4 x AAA Batteries) |
| Working Temperature | -25°~ 60° |
| Working Humidity | 0% – 90% |
| Door Thickness | 35 – 65mm |
| Test | 250K Cycle Times; 200 Hours Salt-spray |
| User Capacity | Fingerprint: 200, Password: 150, Card: 200 |
| Unlocking Way | Bluetooth, WiFi, Fingerprint, PIN Code, RFID Card, Key, Keyless Fob |
| Wireless Network Protocol | TTlock BLE, TTIock WIFI/BLE |
| Voice Commands Program | Voice Commands Via Google Assistant & Amazon Alexa |
| Application | Residential, Office, Airbnb, Condo & Apartment Projects |
Specifications of the unit including the dimensions of the unit and the parts you will receive. This drawing is the property of Euro Art UK Limited, all design rights reserved.

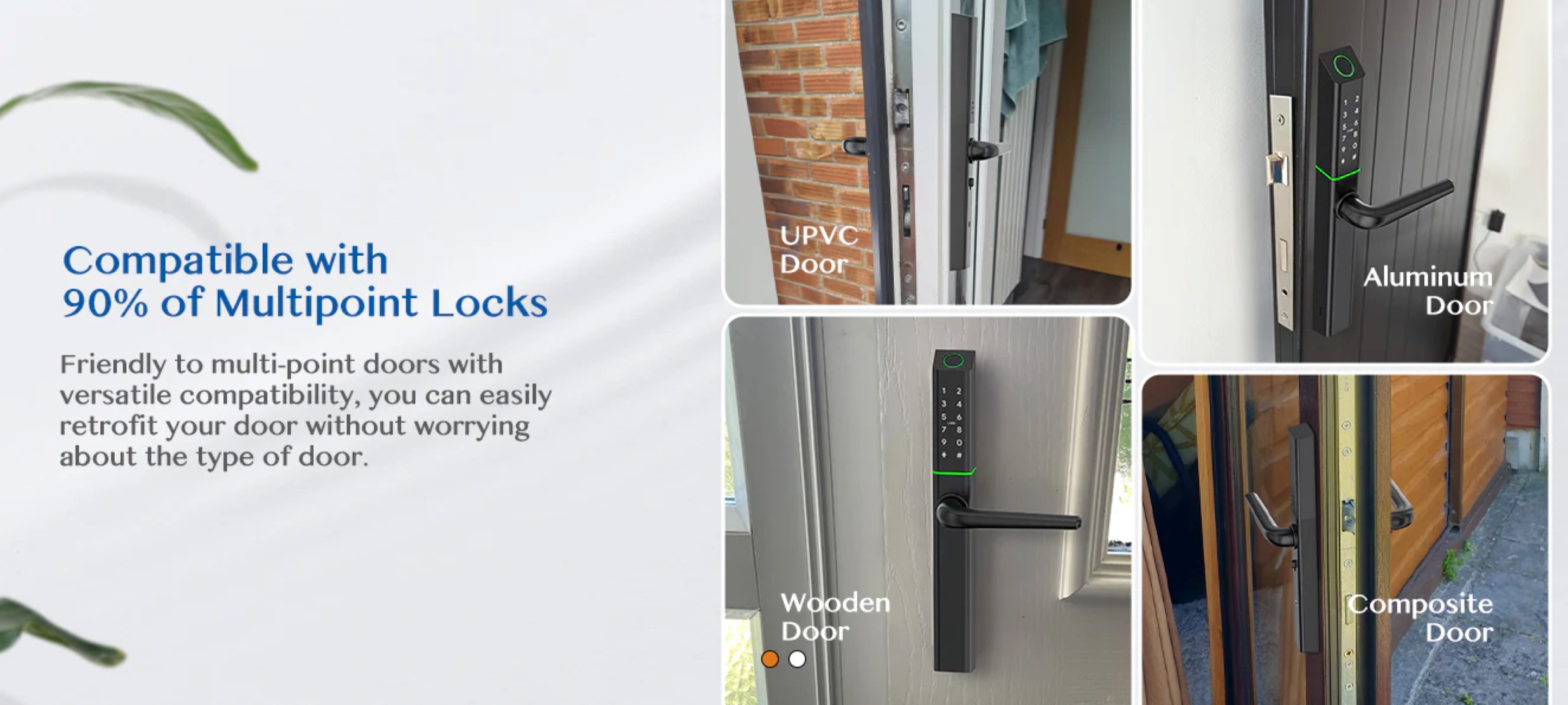

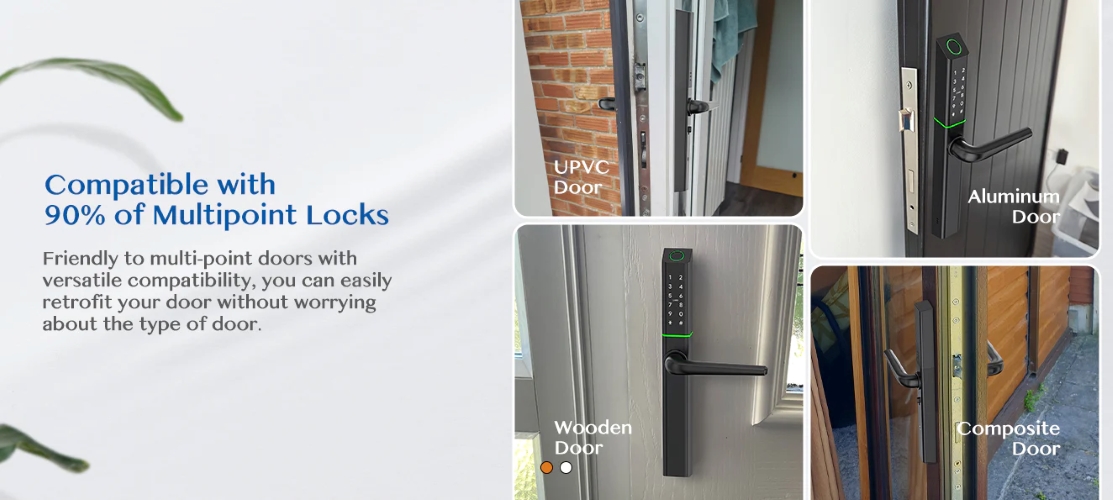

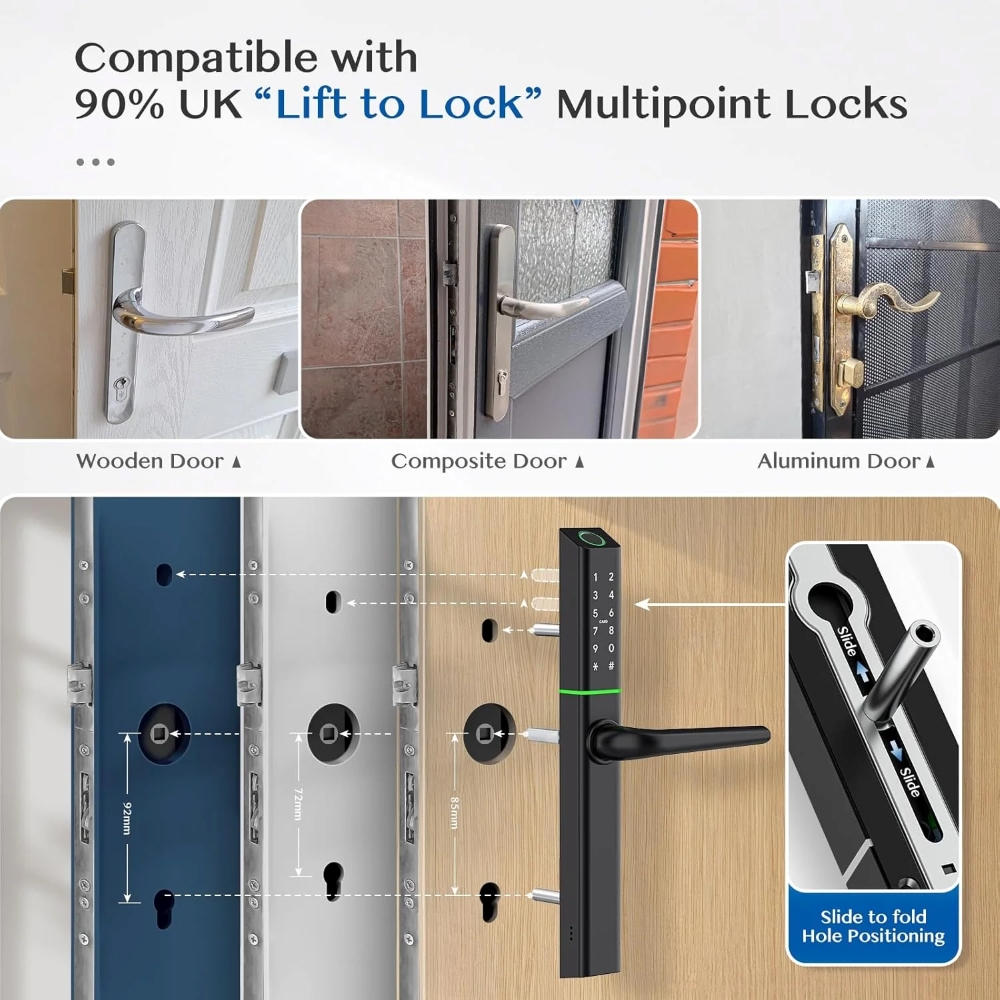

For UPVC & Composite Doors, this smart lock does works with 90% of the Multipoint locks. If it does not then you might have to change your Multipoint Lock if it is an old version but this digital lock does work on most of them without the need to changing it.
