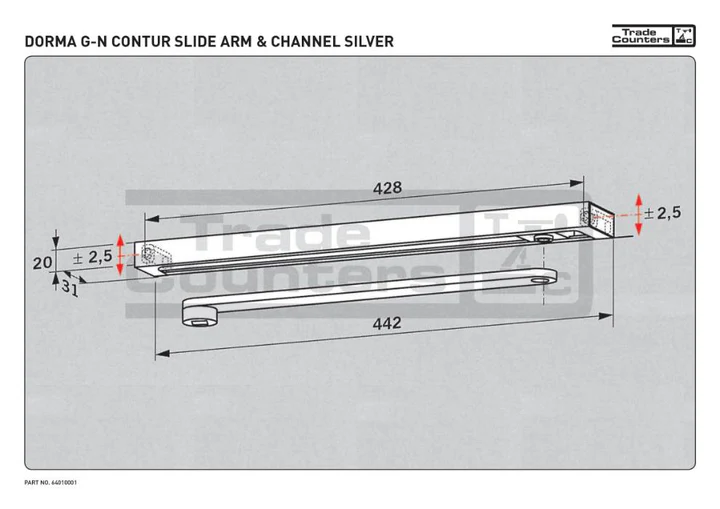

G-N Slide channel

The G-N slide channel assembly incorporates the slide arm, slide channel, slide block, fixing adapters, screws and end caps. The G-N slide channel assembly is non-handed and can be combined with all door closer models. Thanks to oblong holes in the fixing adapters, the slide channel can be effectively adjusted to variations in the drill hole pattern while keeping the gap between door closer body and slide channel aligned and parallel.

The G-N has been successfully type-tested to EN 1154 in conjunction with the TS 93.

G-EMF Slide Channel

The G-EMF slide channel assembly enables the door to be held open securely at a preselected position without fall-back. The hold-open point can be adjusted within an opening angle of approx. 80° and 140°. In the event of an alarm or a fault in the power supply, the hold-open is released and the door is closed by the door closer.

The G-EMF slide channel assembly comprises the slide arm, slide channel, slide block, electro-mechanical hold-open unit, cover, fixing screws and end caps, is transom-fixed and non-handed.

• Operating Voltage 24V DC
• Power Input 1.4W

The TS 93 EMF has been successfully type-tested to EN 1155, Electrically Powered Hold-Open Devices.

G-N Angle Brackets

For push-side fixing of the slide channels
to door frames with a deep reveal.
